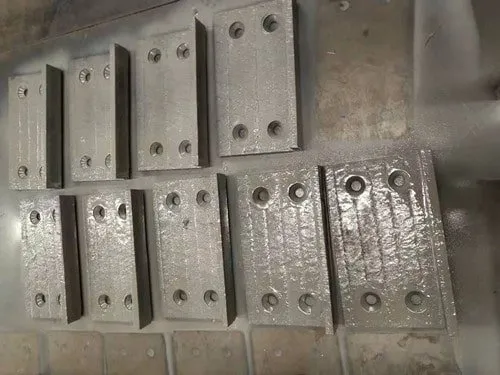

Chute Liner Plates are wear-resistant protective plates installed inside industrial chutes to reduce abrasion, impact damage, and material erosion. They help protect the structural surfaces of material-handling equipment that continuously transports abrasive materials such as coal, iron ore, limestone, clinker, sand, aggregates, and mineral concentrates. By creating a replaceable wear surface, chute liner plates can help extend equipment service life and reduce maintenance requirements in demanding industrial environments.
Hard-Tuff provides wear-resistant product solutions for industries that require dependable protection against material-related wear. Chute liner plates are commonly used in mining, cement manufacturing, steel production, power generation, mineral processing, and bulk material handling. The correct liner selection depends on the type of material being conveyed, impact severity, sliding abrasion, operating temperature, chute geometry, and the required service life.
Chute Liner Plates are replaceable wear-protection components fitted to the internal surfaces of chutes, transfer points, hoppers, and material discharge systems. They protect the underlying equipment structure from continuous contact with moving materials. Depending on the application, these liners may be manufactured from abrasion-resistant steel, chromium carbide overlay plates, hardfacing plates, rubber, polyurethane, ceramic materials, or other wear-resistant materials.
The primary purpose of a chute liner is to reduce direct wear on the equipment structure. When abrasive materials slide, fall, or move at high speed through a chute, they can gradually damage unprotected steel surfaces. Installing a suitable liner helps absorb wear and allows the protective component to be inspected, repaired, or replaced without replacing the entire chute assembly.
Different chute designs require different liner characteristics. Some applications experience severe sliding abrasion, while others involve heavy impact from falling rocks, ore, or bulk materials. Selecting a liner with the appropriate combination of hardness, toughness, impact resistance, and surface properties is essential for effective protection.
The performance of chute liner plates depends on the material composition, manufacturing process, plate thickness, installation method, and operating environment. Common properties considered during selection include the following:
Chute liner plates help protect the internal surfaces of equipment from continuous abrasion. Materials such as iron ore, coal, clinker, limestone, and sand can gradually remove metal from unprotected surfaces. A correctly selected liner provides a dedicated wear surface that helps minimize damage to the chute body and supporting structure.
Wear on chute walls can reduce material containment, affect material flow, and eventually require structural repairs. Installing suitable liners helps protect these surfaces and can extend the useful life of the equipment. The actual service life depends on material characteristics, flow velocity, impact conditions, liner thickness, and maintenance practices.
Replacing a worn liner can be simpler and more economical than repairing or replacing an entire chute. When liner systems are designed for accessible inspection and replacement, maintenance teams can plan servicing more effectively. This may help reduce unexpected shutdowns and improve the availability of material-handling systems.
Appropriately selected and installed liners can help maintain the intended internal profile of a chute. This is important in systems where worn or damaged surfaces contribute to material buildup, uneven flow, or blockages. The liner material and surface finish should be chosen according to the material's flow characteristics, moisture content, and tendency to adhere to surfaces.
Chute liner plates allow wear protection to be concentrated in areas exposed to the highest levels of abrasion and impact. This can reduce the need to use expensive wear-resistant materials throughout the entire equipment structure. The overall cost benefit depends on initial product cost, installation expenses, service life, replacement frequency, and maintenance requirements.
Chute Liner Plates, Chute Liner Plates Manufacturers, Chute Liner Plates Suppliers, Chute Liner Plates Stockists, Chute Liner Plates Exporters
Mining facilities transport iron ore, copper ore, coal, aggregates, and other mineral materials through transfer chutes, hoppers, crushers, screens, and conveyor systems. These materials can cause severe abrasion and impact damage, particularly at transfer points where material changes direction or falls from a height. Chute liner plates help protect these surfaces and support reliable operation in demanding mining environments.
Cement plants handle abrasive materials such as limestone, clinker, gypsum, raw meal, and cement additives. Chute liner plates may be installed in conveyor transfer systems, storage hoppers, discharge chutes, and material distribution equipment. The selected liner should withstand the expected abrasion and operating temperature while supporting the material flow requirements of the process.
Steel manufacturing facilities handle iron-bearing materials, coke, slag, scrap, and other industrial substances. Chutes and transfer systems in these facilities can experience substantial wear due to continuous material movement. Suitable liner plates help protect vulnerable surfaces and reduce the frequency of equipment repairs. Applications involving elevated temperatures require careful selection of the liner material.
Power plants use chutes and hoppers to transport coal, ash, limestone, and other process materials. Abrasive particles can wear internal surfaces during repeated loading and discharge operations. Chute liner plates help protect equipment in suitable conveyor transfer points, coal handling systems, and ash handling installations, depending on the process conditions and material compatibility.
Ports, terminals, warehouses, and bulk material handling facilities use chutes to transfer large quantities of coal, minerals, grain, aggregates, and other products. Liner plates can help manage wear caused by continuous material flow and repeated loading operations. The selected design should account for throughput, particle characteristics, impact points, and the equipment's maintenance requirements.
Recycling facilities handle mixed materials that may include metal fragments, glass, construction debris, aggregates, and industrial waste. Depending on the application, chute liner plates can protect transfer systems and collection hoppers from abrasion and impact. The appropriate material should be selected according to the composition of the waste stream and the expected operating conditions.
Chute liner plates are available in different material types to suit varying wear conditions. Choosing the right type requires evaluating abrasion, impact, temperature, material flow, installation requirements, and operating cost.
Abrasion-resistant steel liners are used where a combination of wear resistance, strength, and toughness is required. These plates may be suitable for chutes handling aggregates, coal, minerals, and other abrasive materials. The appropriate grade and hardness should be selected according to the impact severity and fabrication requirements.
Chromium carbide overlay liners consist of a steel base plate with a wear-resistant overlay containing chromium carbides. They are commonly considered for applications involving severe sliding abrasion. Their suitability depends on overlay composition, thickness, operating conditions, and the level of impact expected in the chute.
Hardfacing liners use a wear-resistant alloy deposited onto a supporting base material through a welding process. Depending on the alloy, these liners can be designed to resist different types of abrasive wear. Technical documentation should be reviewed to verify hardness, deposit characteristics, and installation requirements.
Rubber and polyurethane liners may be suitable for applications where impact absorption, noise reduction, or resistance to certain forms of material buildup is important. Their performance depends on temperature, chemical exposure, material size, and mechanical loading. These materials are not interchangeable with metallic liners in every application.
Ceramic liners can provide high abrasion resistance in suitable industrial environments. They are often considered where fine or highly abrasive particles cause rapid surface wear. However, the ceramic grade, bonding method, impact severity, and installation design must be evaluated because some ceramic systems may be vulnerable to heavy impact or mechanical shock.
Chute liner plate specifications vary according to the material type, manufacturing process, operating conditions, and equipment design. The following table provides general specification categories. Confirm actual grades, hardness values, dimensions, and technical requirements with the selected product's datasheet.
|
Product Name |
Chute Liner Plates |
|---|---|
|
Product Type |
Industrial Wear-Resistant Liner Plates |
|
Available Material Types |
Abrasion-Resistant Steel, Chromium Carbide Overlay, Hardfacing Alloy, Rubber, Polyurethane, or Ceramic, Depending on Application |
|
Base Material |
As per Selected Liner Material and Product Design |
|
Hardness |
Depends on Material Type and Grade; Confirm with the Manufacturer's Technical Datasheet |
|
Thickness |
As per Customer Requirements, Application Conditions, and Product Availability |
|
Length and Width |
Standard or Custom Dimensions, Subject to Availability |
|
Surface Finish |
As Supplied or Specified for the Selected Liner Material |
|
Manufacturing Process |
Depends on Material Type, Including Steel Plate Processing, Overlay Welding, or Other Applicable Manufacturing Methods |
|
Installation Method |
Bolting, Welding, Mechanical Fixing, or an Approved Liner Attachment System |
|
Customization |
Subject to Product Type, Manufacturing Capability, and Customer Requirements |
|
Applications |
Mining, Cement, Steel Production, Power Generation, Recycling, and Bulk Material Handling |
Selecting the right chute liner plate requires a detailed understanding of the operating environment. A liner designed for sliding abrasion may not perform well in a chute exposed to heavy impact. Similarly, a material that works effectively in dry conditions may not be suitable for wet or sticky material. Evaluate the following factors before making a selection.
Chute liner plates and general wear plates both provide protection against material-related damage, but they may serve different equipment requirements. Chute liner plates are specifically selected and configured to protect the internal surfaces of chutes, transfer points, and material discharge systems. General wear plates may be used in a broader range of equipment, including hoppers, conveyor components, crushers, and processing machinery.
The material used for either product may be similar, including abrasion-resistant steel, chromium carbide overlay, or hardfacing alloys. The main difference is often the application, shape, mounting arrangement, and required performance characteristics. Chute liners must be compatible with material flow and equipment geometry, while other wear plates may be designed for different loading and wear conditions.
When comparing options, review the expected abrasion level, impact severity, plate dimensions, installation method, maintenance access, and total lifecycle cost. The final selection should be based on the equipment's actual operating requirements rather than product name alone.
Routine inspection and maintenance help ensure that chute liner plates continue to provide effective protection. Inspection schedules should reflect the severity of the application, the importance of the equipment, and the recommendations of the liner manufacturer.
Hard-Tuff focuses on wear-resistant solutions for industrial environments where material abrasion can affect equipment reliability, maintenance requirements, and production efficiency. Selecting an appropriate chute liner involves evaluating the material being transported, the severity of wear, the equipment layout, and the required operating life.
Before ordering chute liner plates, customers should confirm material type, hardness where applicable, dimensions, thickness, attachment method, and technical documentation. Providing details about the chute design and operating conditions helps identify a suitable wear-protection option for the application.
Chute Liner Plates play an important role in protecting industrial material-handling equipment from abrasion, impact, and surface damage. By selecting a liner suited to the conveyed material, operating conditions, and chute design, facilities can help extend equipment life, reduce maintenance requirements, and improve operational reliability. Reviewing material properties, dimensions, attachment methods, and technical documentation is essential before selecting a product. Contact Hard-Tuff to discuss chute liner requirements for your industrial application.
