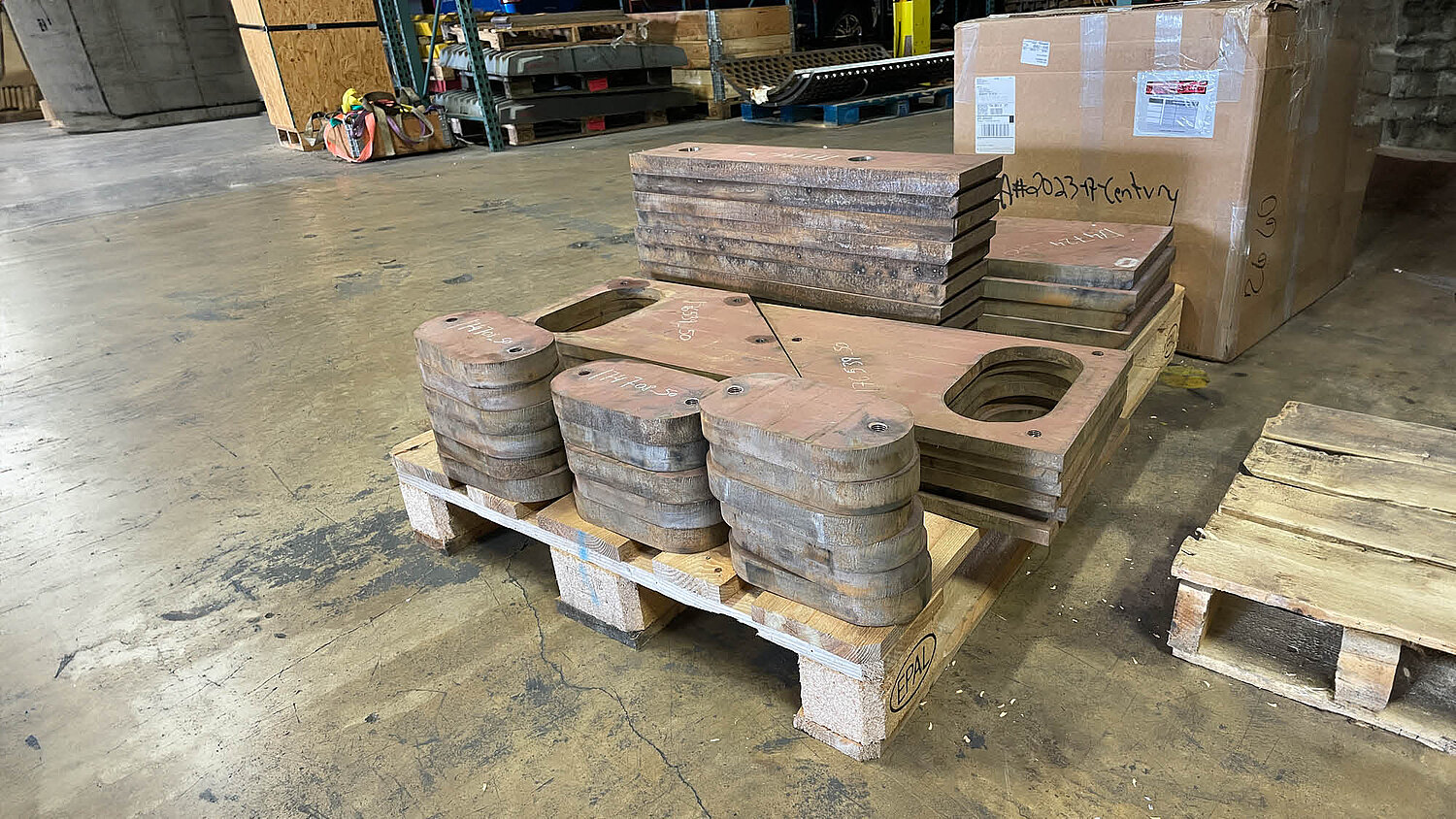

Wear Plates for Crushers are protective components designed to withstand abrasion, impact, and material friction during crushing operations. They help protect critical equipment surfaces from damage caused by hard rocks, minerals, aggregates, and other abrasive materials. Used in mining, quarrying, construction, cement manufacturing, and mineral processing, crusher wear plates can help extend equipment service life and reduce maintenance requirements.
Crushing equipment operates under demanding conditions because materials repeatedly strike, slide against, and pass through internal machine surfaces. Without suitable wear protection, these surfaces may experience rapid material loss, dimensional changes, and reduced operating efficiency. Selecting the correct wear plate depends on the crusher type, material hardness, feed size, impact intensity, operating conditions, and required service life.
Hard-Tuff focuses on industrial wear-resistant solutions for applications involving abrasive materials and demanding operating environments. Understanding the different types of crusher wear plates, their material properties, and their applications helps equipment operators select appropriate protection for their crushing systems.
Wear Plates for Crushers are replaceable protective plates installed in selected areas of crushing equipment to minimize wear caused by rock impact, abrasion, and material movement. Depending on the machine design, they may be fitted to crushing chambers, feed chutes, discharge areas, hoppers, transfer points, and other surfaces exposed to abrasive materials.
These plates can be manufactured from abrasion-resistant steel, manganese steel, chromium carbide overlay materials, hardfacing alloys, or other wear-resistant materials. The appropriate material depends on the crushing mechanism and the balance between impact resistance, abrasion resistance, toughness, and fabrication requirements.
Crusher wear plates are not interchangeable across every machine or application. Jaw crushers, cone crushers, impact crushers, and other crushing systems operate differently and may require different wear components. The plate design must match the equipment manufacturer's requirements and the conditions in which the crusher operates.
Abrasion-resistant steel plates are used in crusher-related equipment where surfaces experience continuous contact with abrasive rocks and minerals. These plates are available in different grades and hardness levels, allowing users to select a material according to the expected wear and impact conditions. They may be used in chutes, hoppers, liners, and other supporting components surrounding crushing machinery.
Manganese steel is commonly used for crusher wear components that experience repeated impact and high compressive loading. Certain manganese steel grades can work-harden under suitable operating conditions, increasing surface hardness while retaining toughness. They are often used for jaw crusher plates and other crushing components where impact resistance is important. The grade and component design should be selected according to the crusher type and feed material.
Chromium carbide overlay plates feature a wear-resistant hardfacing layer deposited onto a supporting steel base plate. The overlay is designed to resist severe abrasion and may be suitable for selected crusher liners, transfer chutes, feed systems, and material-handling equipment. These plates should be evaluated carefully for high-impact applications because a material optimized for abrasion may not be the best choice for every crushing environment.
Hardfacing wear plates are produced by depositing a wear-resistant alloy onto a base material using a suitable welding process. The deposited layer may contain chromium-rich alloys, carbide-forming elements, or other specialized alloy systems. Hardfacing can provide protection for equipment surfaces exposed to abrasive materials, but performance depends on the overlay composition, thickness, bonding quality, and operating conditions.
Composite wear plates combine two or more materials to achieve a specific combination of structural strength and surface protection. In industrial wear applications, a composite plate may use a steel base with a specialized wear-resistant surface. This construction can be useful in crusher support equipment, hoppers, chutes, and other areas where a protective surface and a supporting base are both required.
The performance of crusher wear plates depends on their material composition, manufacturing method, hardness, toughness, and suitability for the operating environment. Important properties to consider include the following.
Wear Plates for Crushers, Wear Plates for Crushers Manufacturers, Wear Plates for Crushers Suppliers, Wear Plates for Crushers Stockists, Wear Plates for Crushers Exporters
Wear plates help protect crusher surfaces from repeated abrasion and impact. By placing a suitable wear-resistant material in high-wear areas, operators can reduce damage to the underlying equipment structure. The resulting service life depends on feed material, crushing settings, operating hours, maintenance practices, and the suitability of the selected plate.
Crusher wear can require frequent inspection, repair, and component replacement. Suitable wear plates provide a replaceable protective surface that can help limit damage to more expensive equipment parts. This may reduce maintenance costs over time, although the actual savings depend on plate price, installation requirements, replacement frequency, and production conditions.
Excessive wear can affect crusher performance, material flow, and equipment availability. Using correctly specified wear plates can help maintain the condition of protected surfaces and support planned maintenance schedules. Regular inspection remains important because worn or damaged plates may need replacement before they compromise safe and efficient operation.
Mining and quarrying operations often process hard materials that can quickly wear ordinary steel surfaces. Crusher wear plates made from suitable abrasion-resistant materials can help withstand these conditions. The correct selection requires evaluating both the abrasive characteristics of the feed material and the impact forces generated during crushing.
Many crusher liners and wear plates are designed as replaceable components. This allows maintenance teams to renew worn surfaces without necessarily replacing the entire machine structure. Correct installation, compatible fasteners, suitable clearances, and adherence to the equipment manufacturer's procedures are essential for effective wear protection.
Mining facilities use crushers to process iron ore, copper ore, gold-bearing rock, coal, and other mineral-bearing materials. Wear plates may be used in crusher feed systems, transfer chutes, hoppers, and selected machine components. Material selection should consider ore hardness, particle size, impact intensity, and the operating requirements of the crushing circuit.
Quarries crush granite, basalt, limestone, gravel, and other materials to produce aggregates for construction and infrastructure projects. These materials can cause significant abrasion during crushing and material transfer. Suitable wear plates help protect exposed surfaces and may reduce the frequency of wear-related maintenance.
Cement plants use crushing equipment to process limestone, clay, and other raw materials. Wear plates may be installed in feed chutes, hoppers, transfer points, and other areas exposed to abrasive material flow. The appropriate material depends on the raw material properties, equipment design, operating temperature, and expected wear rate.
Construction and demolition recycling facilities process concrete, masonry, asphalt, and other recovered materials. Crusher-related equipment may experience abrasion, impact, and irregular loading from mixed feed materials. Wear plates can help protect suitable equipment surfaces, provided that the selected design matches the material mix and impact conditions.
Coal-handling systems use crushing equipment to reduce material size before subsequent processing or use. Wear-resistant plates may be fitted to selected chutes, hoppers, liners, and transfer systems exposed to abrasive coal and associated materials. The plate must be appropriate for the feed characteristics, equipment design, and operating environment.
Industrial mineral processing plants crush materials such as gypsum, silica-bearing minerals, and other mineral products. Wear plates may protect equipment surfaces where continuous material movement causes abrasion. The selection process should account for the material's hardness, particle shape, moisture content, and crushing method.
Wear plate specifications vary according to the material grade, manufacturing process, crusher design, and intended application. The following table lists common specification categories. Actual hardness, dimensions, chemical composition, and performance values should be verified against the manufacturer's technical datasheet and the equipment requirements.
|
Product Name |
Wear Plates for Crushers |
|---|---|
|
Product Type |
Crusher Wear Plates, Liners, and Wear-Protection Components |
|
Material Options |
Abrasion-Resistant Steel, Manganese Steel, Hardfacing Alloys, Chromium Carbide Overlay, or Composite Materials, Depending on Application |
|
Material Grade |
As per Crusher Design, Product Type, and Customer Requirements |
|
Hardness |
Grade-Dependent; Confirm with the Manufacturer's Technical Datasheet |
|
Thickness |
As per Equipment Design, Selected Grade, and Application Requirements |
|
Length and Width |
Standard or Custom Dimensions, Subject to Product Availability |
|
Shape and Profile |
Flat, Formed, or Equipment-Specific Profile, Depending on Design |
|
Manufacturing Process |
Depends on Material Type; May Include Steel Processing, Casting, Hardfacing, or Overlay Welding |
|
Wear Resistance |
Selected According to Abrasion Severity and Operating Conditions |
|
Impact Resistance |
Depends on Material Grade, Component Design, and Impact Severity |
|
Installation Method |
As Recommended by the Crusher Manufacturer; May Include Bolting or Other Approved Fixing Methods |
|
Applications |
Mining, Quarrying, Aggregate Production, Cement Manufacturing, Recycling, and Mineral Processing |
|
Customization |
Subject to Equipment Drawings, Manufacturing Capabilities, and Product Availability |
Choosing the correct wear plates requires an understanding of the crushing process, feed material, machine design, and operating conditions. A material that performs well under sliding abrasion may not be suitable for a component exposed to heavy impact. Reviewing the following factors helps determine an appropriate wear-protection solution.
The terms wear plates and crusher liners are sometimes used interchangeably, but their exact meanings depend on the equipment and manufacturer. Crusher liners generally refer to replaceable protective components fitted to the internal working surfaces of crushing equipment. Wear plates can refer more broadly to protective plates used in the crusher itself or in related material-handling systems.
Crusher liners may be shaped specifically for the crushing chamber and may directly influence the crushing process. General wear plates may instead protect chutes, hoppers, feed areas, and other surfaces exposed to material movement. The required design, material, and installation method therefore depend on the component's function and location.
When ordering replacement parts, provide the crusher model, component name, dimensions, material grade, and relevant drawings or part references. This helps ensure that the supplied component is compatible with the equipment and its operating requirements.
Regular inspection helps identify wear before it causes equipment damage or unplanned downtime. Maintenance intervals should be based on the crusher manufacturer's instructions, operating severity, feed material, and previous wear patterns.
Hard-Tuff focuses on industrial wear-resistant solutions for equipment exposed to abrasion and demanding material-handling conditions. Selecting suitable wear plates for crushers requires consideration of the crusher type, feed material, impact conditions, required dimensions, and expected service life.
Before purchasing crusher wear plates, confirm the available material grades, dimensions, manufacturing details, technical documentation, and equipment compatibility. Providing crusher model information and details about the material being processed helps establish the requirements for a suitable wear-protection solution.
Wear Plates for Crushers play an important role in protecting crushing equipment from abrasion, impact, and material-related surface damage. Selecting the correct material and design can help extend component service life, support equipment reliability, and reduce wear-related maintenance. The best choice depends on the crusher type, feed material, impact conditions, plate dimensions, and manufacturer's recommendations. Contact Hard-Tuff to discuss the requirements for your crusher wear-protection application.
